Superfine Rotor Classifier

【Production capacity】：16-160T/H Note: This is a mean value capacity, and the specific is subject to the clients’actual equipment configuration in site.

【Processable Material】：Limestone, calcite, fly ash, Calcium carbide desulfurization, kaolin, calcium carbonate, coal gangue, gypsum, water granulated slag, fine slag powder, coal dust, bentonite, barite, marble, talc, refractory material.

【Range of Application】：With grinding mill and ball mill to screen final product. Being set up in sand making production line.

Chat Online Leave Message

Product introduction

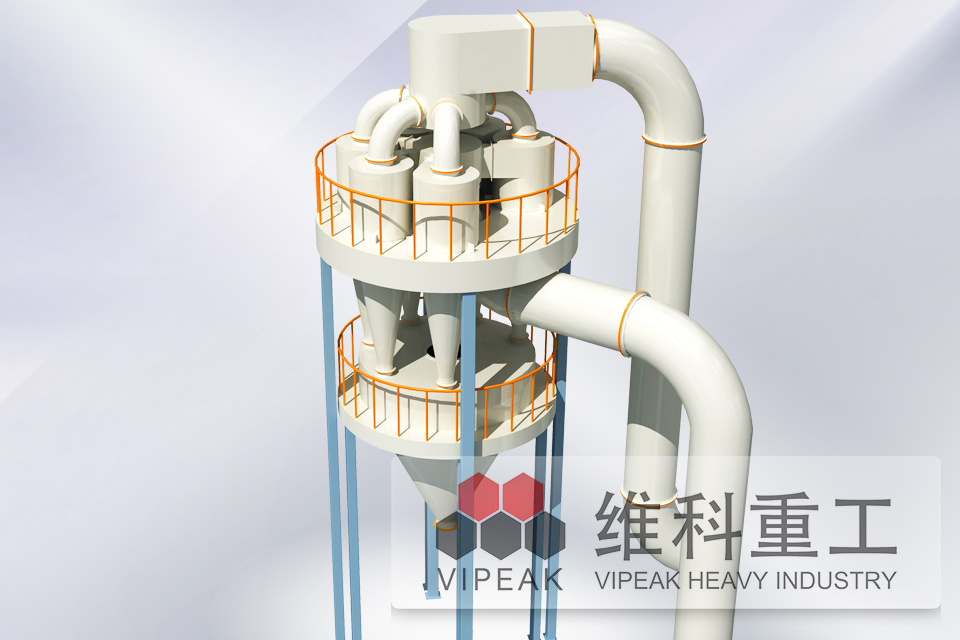

KX superfine rotor classifier is external circulating new type classifier with rotor, and it’s designed and developed by Vipeak. Based on rotor type classifier and combined plane eddy flow theory , this kind of classifier is designed. Proved by practical use, powder classifying efficiency is up to 85%, flexible in fineness adjustment, reliable in performance.

Product superiority

High quality of final product

New type high efficiency low resistivity cyclone dust collector makes low resistance and high dust collection efficiency.

Longer service life

New type lining plate is adopted in all consumable parts, easy to maintain, and effectively extanding the life of the host machine.

Shock absorption device

Dustproof -shock absorpting fan minimize the vibration of the whole system

Anti knot fell good effect

Flexible sweeper is set inside the machine to keep machine clean.

Working principle

1.Raw material is taken to the inside of classifier from hopper, then falls on the combination propeller bulk plate which combines with rotor, under the force of rotation of bulk plate. Material will be diffused to all around under the centrifugal force, meanwhile, material will be raised by the updraft caused by blade rotation, and material boiling will be formed on the bulk plate blade. Finer powder will float and suspend, and coarse material will falls down along the cylinder wall. Then, the first process will be completed.

2.A lower cage-shape rotor 10 is set under the material diatributing tray. The lower cage-shape rotor rotates along with the principle axis. With the rotating movement, vortex flow is formed. Then the coarser and heavier material will be scattered again, and the finer material will be raised and returned to the circulating air for another classification. And the coarse powder will be excluded from endocone through trickle device.

Technical Parameters

model	speed of mainshaft (r/min)	capacity (t/h)	Product fineness (80um Square hole sieve) (80um)	Main motor			supporting fan
model	speed of mainshaft (r/min)	capacity (t/h)	Product fineness (80um Square hole sieve) (80um)	model	power (kw)	speed adjustable range (r/min)	model	rotate speed (r/min)	wind pressure (Pa)	blast capacity (m3/h)	motor power (kw)
KX500	190-380	16-20	8%-10%	YCTL225-4A	11	125-1250	KXJF-No8C	1680	2494	29668	30
KX600	150-350	21-28	8%-10%	YCTL225-4B	15	132-1320	KXJF-No10C	1200	2400	34996	37
KX700	130-320	35-46	8%-10%	YCTL225-4C	18.5	132-1320	KXJF-No12.5C	1000	2390	64188	55
KX800	120-280	55-65	8%-10%	YCTL280-4B	22	132-1320	KXJF-No14C	980	2546	86331	75
KX900	120-280	70-86	8%-10%	YCTL355-4A	37	132-1320	KXJF-No16B	800	2456	99493	90
KX1000	120-280	90-115	8%-10%	YCTL355-4B	55	132-1320	KXJF-No16B	900	2684	136430	110
KX1200	120-260	120-160	8%-10%	Y380M-4	75	120-1480	KXJF-No20B	680	2771	165164	160
